Helical Blade Mixers

Helical Blade Mixers

A highly efficient and versatile horizontal helical blade industrial mixer - perfect for powders, pastes, slurries and liquid mixes.

JR Boone's Horizontal Helical Blade Mixer (also known as a Ribbon Blade Mixer) is an interrupted ribbon blender / mixer with the four mixing elements supported on a patented clean arm that attaches around the central shaft creating a strong and hygienic design.

Description / Overview:

Perfect for powders, pastes, slurries and liquid mixes the Helical Blade Mixers efficient four blade design and slow rotational speed combine with a short length to diameter ratio to give a fast gentle mix with low power consumption providing significant benefits over conventional ribbon mixers or spiral mixers. Horizontal Helical Blade Mixers are available in 18 Standard batch sizes from 50 L to 10,000 Litres, continuous mixers, lab mixers and non-standard versions are also produced to match your specification

A wide range of options are available to match your application.

The key benefits of J R Boone Helical Blade Mixers are:

  • The helical blades give the versatility to mix dry and damp powders, pastes, slurries and liquids
  • The Omega shape of the mixing vessel ensures all the product is entrained by the helical blades
  • Highly efficient mixing enables trace and minor ingredients to be added directly into the mixer avoiding the need for a pre mix
  • Accurate scale up from our pilot scale test machines to production scale can be guaranteed
  • Easy to clean with our patented 'Clean Arm' attachment and only 4 mixing blades for any size of machine
  • Lower capital cost results from a simple design giving a minimum number of working parts which also delivers low running costs, less maintenance and shorter cleaning times
  • The HHBM delivers all these features providing far more flexibility and utility than conventional Ribbon Blade mixers or interrupted spiral mixers
Product mixes:

Dry cell battery powders

Ready Mixed Tile Adhesive

Mayonnaise and seafood mixes

Cake Mixes

Catering recipes

Fine chemical powder mixing

Powdered soup mixes

Breakfast cereals prior to extrusion

Powdered drinks

Flour batter mixes

Spice and flavours

Meat mixes

Thick slurry mixing

Toiletry preparations

Resin based pastes

Sugar paste



Features & Options:

FEATURES

Type

Horizontal Helical Blade Mixer (HHBM) (aka Ribbon Blade Mixer)

Mixing action

Medium to low shear contra flow Mixing

Construction

A free standing fully welded omega shaped vessel with adjustable sealing glands

Size range 50 to 10000 Liters.

Safety CE Certified.

Specialist mixing applications

Continuous mixing

Mixing / Processing with Pressure/Vacuum

Heating / Chilling

Laboratory mixers

OPTIONS

Any number of feed arrangements.

Flush fitting plug valve discharge

Slide valve discharge

Bomb door discharge

Rotating shell discharge

Air purged glands or mechanical seals.

Pressure rated quality assurance sampling valves

Jacketed mixing vessel for heating and cooling

Pressure or vacuum vessel design

Liquid addition spray systems

Polished, bead blast or coated finishes

ATEX, PED certified machines

Variable speed control

Mixer weighing systems

HMI, PLC Control and instrument systems

High shear refiners, cutters, choppers

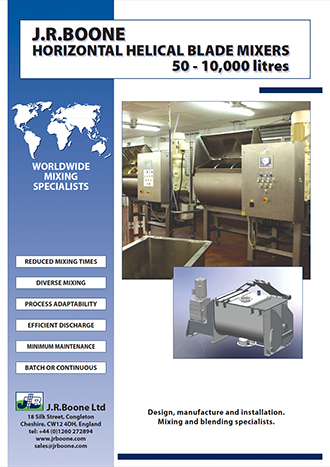

Specification sheet:
  • Horizontal Helical Blade Mixers
  • Ribbon Blade Mixers
  • Ribbon Blender
  • Horizontal Helical Blade Mixers
